Thread: Mile High Turbo Firebird Build

  1. #31
    Full Throttle Extreme! Turningfast's Avatar
    Join Date
    Nov 2005
    Location
    Levittown Pa
    Posts
    2,987

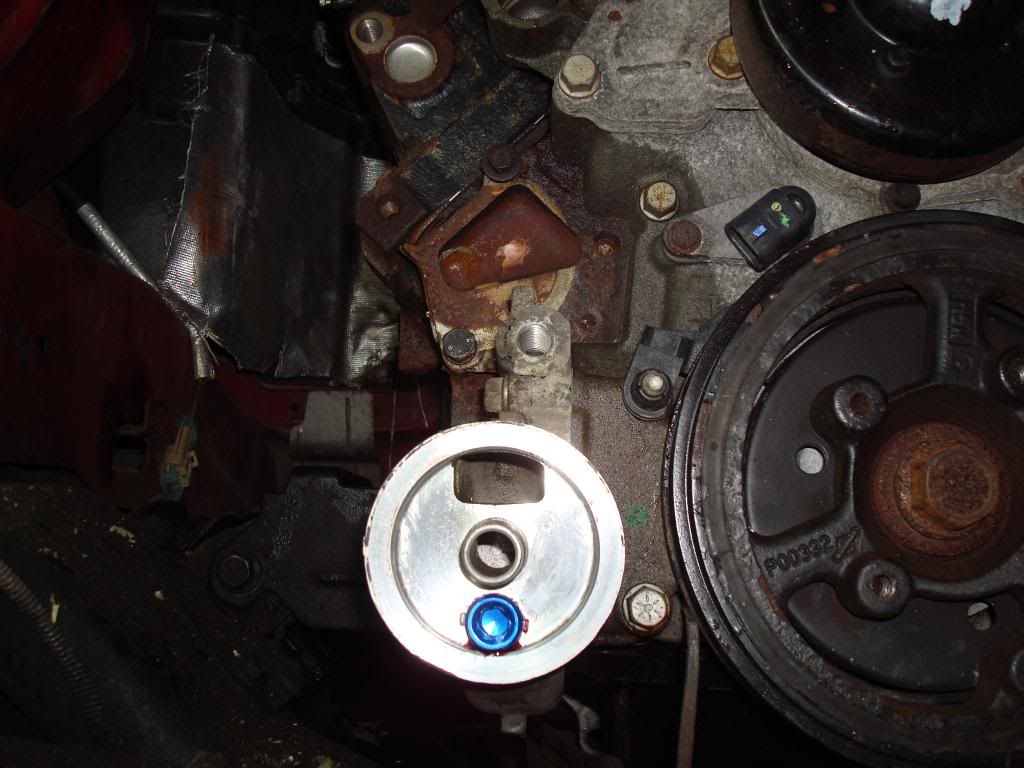

    The blue one in the picture of the oil filter housing. Replaces the bypass valve.
    Running turbo car but.......for how long? up to 25#'s so far so good http://fquick.com/1SICK6
    11.63 @118.9 1.63 60' Best trap 119.6
    After almost 30k miles it popped, junk yard L26 going in with a better turbo
    Ooops, I did it again, lol.

  2. # ADS
    Circuit advertisement
    Join Date
    Always
    Location
    Advertising world
    Posts
    Many

  3. #32
    Half Throttle
    Join Date
    Jul 2012
    Location
    7100 feet up.
    Posts
    421
    And what does it do??

    OP- I'm bout an hour south of you running the same general build! Whats your plan for tuning?

  4. #33
    ┬─┬ ノ( ゜-゜ノ) triple_l82's Avatar
    Join Date
    Dec 2005
    Location
    (◉◞౪◟◉)
    Posts
    7,146
    replacing the bypass valve with a plug prevents oil from "bypassing" the oil filter and allowing unfiltered oil into the engine. Which is a common reason for failure in these engines. Its just another preventive measure when modifying these engines.
    Larry:
    1996 camaro- Ole Blue. the very very very long time consuming project car
    1997 camaro- VIPER- turbov6camaro, search the forum for more info
    1979 Mustang Cobra - dad passed and left it to me, gonna be a clean street/strip car
    2014 Silverado CCSB 4x4 LTZ diamond white. Daily driver

  5. #34
    Half Throttle FinkenZ34's Avatar
    Join Date
    Jul 2007
    Location
    Wesminster, Colorado
    Posts
    337
    Quote Originally Posted by Docta View Post
    And what does it do??

    OP- I'm bout an hour south of you running the same general build! Whats your plan for tuning?
    DHP, and my location isn't correct anymore, just being lazy.
    1998 Firebird: Turbo Build In Progress
    NIC cam, ARP Head Studs, LS6 springs, LS7 lifters, Flowmaster catback, Ram-air mod.

  6. #35
    Half Throttle
    Join Date
    Jul 2012
    Location
    7100 feet up.
    Posts
    421
    Quote Originally Posted by FinkenZ34 View Post
    DHP, and my location isn't correct anymore, just being lazy.
    What dhp? And you said mile high, so I assumed Denver.

  7. #36
    Half Throttle FinkenZ34's Avatar
    Join Date
    Jul 2007
    Location
    Wesminster, Colorado
    Posts
    337
    Powrtuner.

    Updated my location. I'm right by the Rocky Mountain airport. If ever u wanna chill hit me up. All the V8 guys never want to lol
    1998 Firebird: Turbo Build In Progress
    NIC cam, ARP Head Studs, LS6 springs, LS7 lifters, Flowmaster catback, Ram-air mod.

  8. #37
    Half Throttle FinkenZ34's Avatar
    Join Date
    Jul 2007
    Location
    Wesminster, Colorado
    Posts
    337
    Got my head gasket set in, front timing cover gasket set, and a zzp front plog I found on Craigslist locally. Now I just gotta wait for the 21.25 lb box from zzp to come in

    1998 Firebird: Turbo Build In Progress
    NIC cam, ARP Head Studs, LS6 springs, LS7 lifters, Flowmaster catback, Ram-air mod.

  9. #38
    Half Throttle FinkenZ34's Avatar
    Join Date
    Jul 2007
    Location
    Wesminster, Colorado
    Posts
    337
    Completely got rid of ac. Had to use a 610k6 belt and has to take the top bolt of my alternator to get the slack I needed then pryed it back into place. No more tension then what the belt had stock, so I'm not worried. Purple powered and pressure washed parts of the bay I couldn't get to when the compressor was mounted up. Super clean. Plenty of room for a big downpipe now



    1998 Firebird: Turbo Build In Progress
    NIC cam, ARP Head Studs, LS6 springs, LS7 lifters, Flowmaster catback, Ram-air mod.

  10. #39
    Half Throttle FinkenZ34's Avatar
    Join Date
    Jul 2007
    Location
    Wesminster, Colorado
    Posts
    337
    Oil tap for timing cover, 90* bend that will thread on to that, a cap for the tap for when I'm n/a, and 3/8 npt plugs for the oil filter bypass hole

    1998 Firebird: Turbo Build In Progress
    NIC cam, ARP Head Studs, LS6 springs, LS7 lifters, Flowmaster catback, Ram-air mod.

  11. #40
    Half Throttle FinkenZ34's Avatar
    Join Date
    Jul 2007
    Location
    Wesminster, Colorado
    Posts
    337
    Quote Originally Posted by triple_l82 View Post
    replacing the bypass valve with a plug prevents oil from "bypassing" the oil filter and allowing unfiltered oil into the engine. Which is a common reason for failure in these engines. Its just another preventive measure when modifying these engines.

    I just got the npt fitting in your picture. I was wondering what all do I need to do to install it?
    1998 Firebird: Turbo Build In Progress
    NIC cam, ARP Head Studs, LS6 springs, LS7 lifters, Flowmaster catback, Ram-air mod.

  12. #41
    ┬─┬ ノ( ゜-゜ノ) triple_l82's Avatar
    Join Date
    Dec 2005
    Location
    (◉◞౪◟◉)
    Posts
    7,146
    you have to take the oil filter housing off the block and clean it. Then figure out how to get the bypass out. Some guys pry it out, others drill. For me, I took a one size bigger drill bit and touched the opening to take off the ridge that holds the plug in. Then i just let the bypass fall out, tapped the hole and threaded the plug. Was super easy that way and clean.
    Larry:
    1996 camaro- Ole Blue. the very very very long time consuming project car
    1997 camaro- VIPER- turbov6camaro, search the forum for more info
    1979 Mustang Cobra - dad passed and left it to me, gonna be a clean street/strip car
    2014 Silverado CCSB 4x4 LTZ diamond white. Daily driver

  13. #42
    Half Throttle FinkenZ34's Avatar
    Join Date
    Jul 2007
    Location
    Wesminster, Colorado
    Posts
    337
    So is the bypass in the block or is it on the filter housing? Any pics of the process?
    1998 Firebird: Turbo Build In Progress
    NIC cam, ARP Head Studs, LS6 springs, LS7 lifters, Flowmaster catback, Ram-air mod.

  14. #43
    ┬─┬ ノ( ゜-゜ノ) triple_l82's Avatar
    Join Date
    Dec 2005
    Location
    (◉◞౪◟◉)
    Posts
    7,146
    the pic with the blue plug in it is where the bypass is. You unbolt it from the block then modify it.
    Larry:
    1996 camaro- Ole Blue. the very very very long time consuming project car
    1997 camaro- VIPER- turbov6camaro, search the forum for more info
    1979 Mustang Cobra - dad passed and left it to me, gonna be a clean street/strip car
    2014 Silverado CCSB 4x4 LTZ diamond white. Daily driver

  15. #44
    Full Throttle Extreme! Turningfast's Avatar
    Join Date
    Nov 2005
    Location
    Levittown Pa
    Posts
    2,987
    I just pry it out. the "valve" is soft, the housing is soft, and the staking done by the facory is not that strong.
    Running turbo car but.......for how long? up to 25#'s so far so good http://fquick.com/1SICK6
    11.63 @118.9 1.63 60' Best trap 119.6
    After almost 30k miles it popped, junk yard L26 going in with a better turbo
    Ooops, I did it again, lol.

  16. #45
    ┬─┬ ノ( ゜-゜ノ) triple_l82's Avatar
    Join Date
    Dec 2005
    Location
    (◉◞౪◟◉)
    Posts
    7,146
    Usd2sing sent me this photo to help show you what the bypass looks like.


    After Dan sent me that pic I realized I had one of my stock housing after I cleaned it up. This is what the stock one looks like,


    and the finished product.


    Hopefully that helps you and its the best I think we can do lol for pics.
    Larry:
    1996 camaro- Ole Blue. the very very very long time consuming project car
    1997 camaro- VIPER- turbov6camaro, search the forum for more info
    1979 Mustang Cobra - dad passed and left it to me, gonna be a clean street/strip car
    2014 Silverado CCSB 4x4 LTZ diamond white. Daily driver
